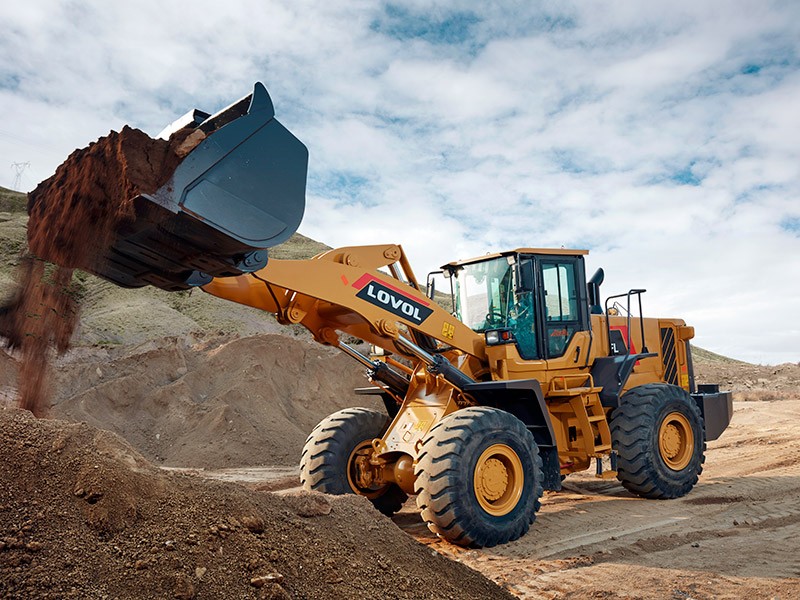

Wheel Loader FL968H

Highlights

*Equipped with the customized CUMMINS engine, with classic inheritance and

superb performance, is of durability and reliability.

*The original Germany-made fully automatic transmission is user-friendly and of

quality assurance.

*Optimized design of front and rear axle housing and multiple reinforced details

make the payload capacity more excellent.

*The upgraded braking system provides reliable braking and security assurance.

Parameters

Item	Unit	Parameter
Rated Power	kW	180
Operating Weight	kg	21200
Bucket Capacity	m³	4
Engine Model	-	CUMMINS QSL9.3
Max. Breakout Force	kN	185
Rated Load	kd	6000
Max. Traction Force	KN	185
Max. Gradeability	°	29
Max. Dump Clearance	mm	3540
Dump Reach	mm	1300
Wheel Tread	mm	2250
Wheelbase	mm	3400
Overall Dimension（L×W×H）	mm	8910x3050x3400
Type	-	Fix&Variable hydraulic system
Steering Angle Each Direction	-	38°±1º
Min. Turning Radius	mm	7280
Working Pressure	Mpa	23
Boom Lifting Time	s	5.7
Total Cycle Time	s	10.6
Fuel Tank	L	363
Hydraulic Tank	L	150
Engine Oil	L	20L
