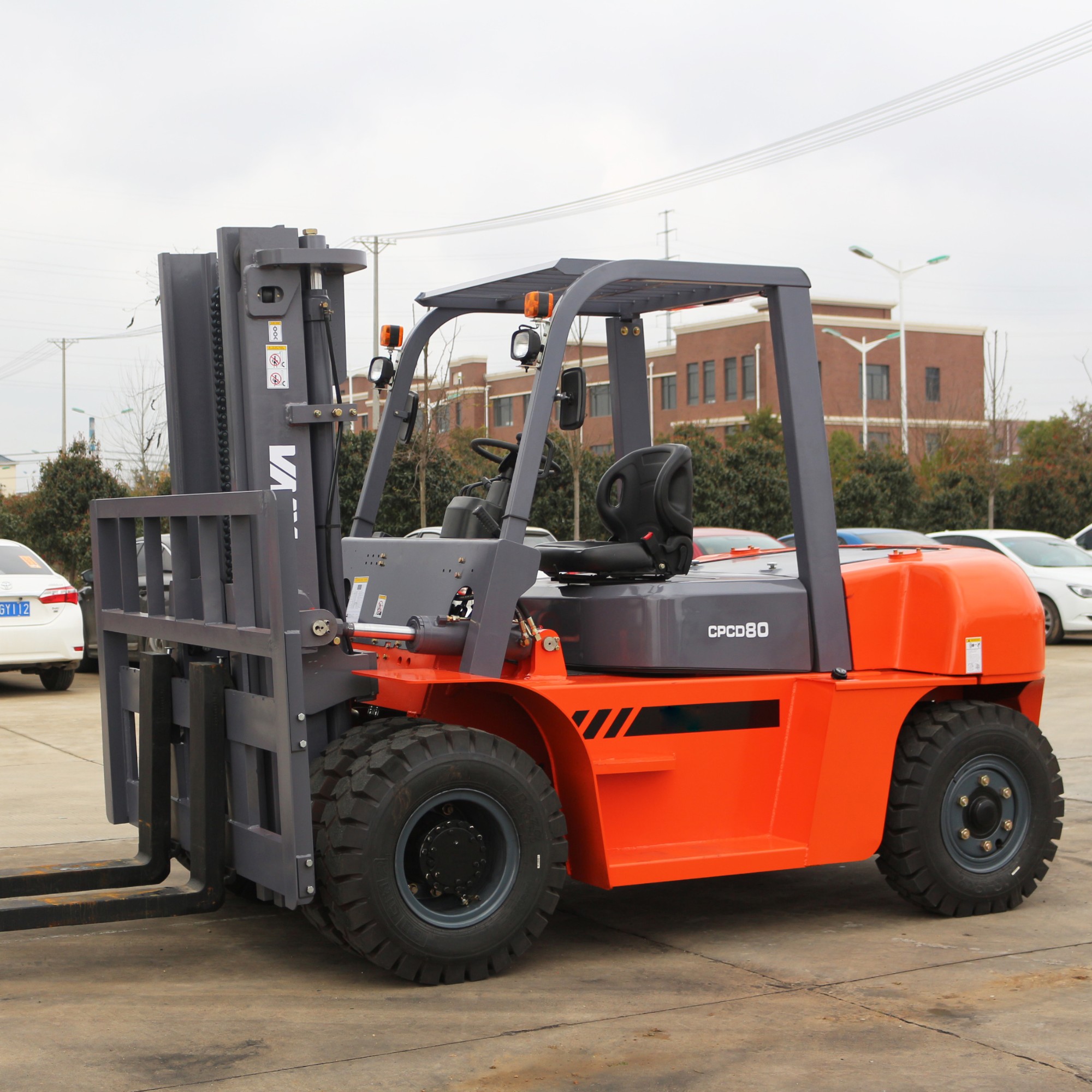

Diesel Forklift 8ton

Model

-

CPCD80

Power type

-

Diesel

Rated capacity

kg

8000

Load center

mm

600

Operator type

-

Drive in seat

SIZE

Max. lift height of mast with load-backrest

mm

4380

Max. lift height of fork(standard)

mm

3000

Height of mast(standard)

mm

2500

Free lift height(standard)

mm

205

Height of load-backrest

mm

1372

Distance from seat to overhead guard

mm

1045

Overhead guard height

mm

2450

Overall length without fork

mm

3600

Front overhang

mm

590

Rear overhang

mm

760

Wheel base

mm

2250

Height of traction pin

mm

395

Min. ground clearance

mm

200

Overall width

mm

1995

Distance between forks

mm

1840/300

Tread(front/rear)

mm

1470/1700

Min. turning radius(outside)

mm

3370

Min. turning radius(inside)

mm

210

Min. intersecting aisle

mm

3060

Mast tilt angle

deg

6°/12°

Fork size

mm

1220x150x75

PERFORANCE

Max. drive speed(with/without full load)

km/h

26/28

Lifting speed(with/without full load)

mm/s

480

Lowering speed(with/without full load)

mm/s

600/300

Max.tractive force(with/without full load)

KN

65

Max. grade ability(with/without full load)

%

28/18

WEIGHT

Total weight

kg

9850

Weight distribution full load(front/rear)

kg

14880/1970

Weight distribution zero load(front/rear)

kg

4070/5800

WHEELS AND TYRES

Quantity of wheels

-

4X/2

Type of tyres

-

Pneumatic tyres

Front tyres

-

8.25-15-14PR

Rear tyres

-

8.25-15-14PR

Driving brake

-

Hydraumatic pedal

Parking brake

-

Mechanical manual

CONTROL DEVICE FOR DRIVING AND TRANSMITTING

Battery

V/AH

24/2x80

Engine model

-

Xichai6110

Rated power

kw/rpm

83/2000

Rated torque

N.m/rpm

450/1450

No. of cylinder

-

6-100x125

Displacement

L

7.13

Fuel tank capacity

L

140

No. of speed transmission

-

2-2 Power shift transmission
