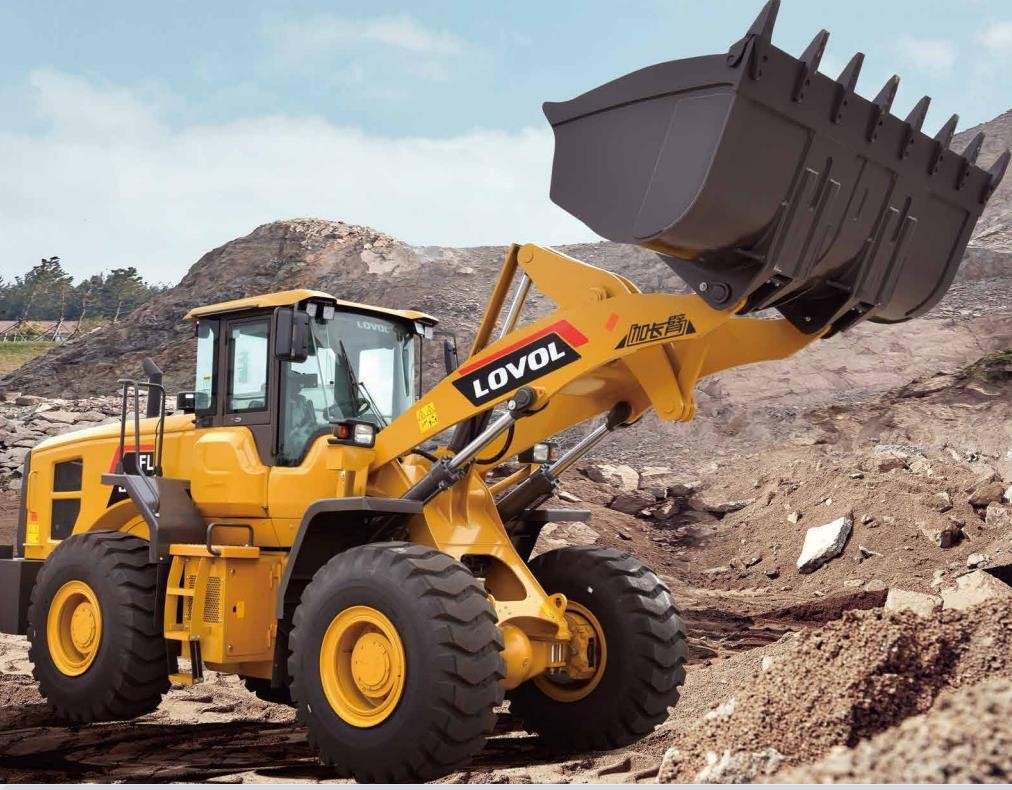

Wheel Loader FL958K

Highlights

*Adopt the industry-leading Fixed & variable hydraulic system that improves the

efficiency of hydraulic system greatly.

*Fully automatic gearbox, easy control, perfect driving feeling.

*The whole equipment with durable components undergoing rigorous tests and

validation deserves your trust.

*The split-type hood and easily-accessible engine parts make it easy for you to

complete maintenance work when standing on the ground.

*Standard 3.3CBM bucket, rated load 5500KG, 10% bigger than average.

Parameters

Item	Unit	Parameter
Rated Power	kW	170
Operating Weight	kg	17910
Bucket Capacity	m³	3.3
Engine Model	-	WP10G231E343
Max. Breakout Force	kN	175
Rated Load	kd	5500
Max. Traction Force	KN	165
Max. Gradeability	°	30
Max. Dump Clearance	mm	3380
Dump Reach	mm	1130
Wheel Tread	mm	2150
Wheelbase	mm	3320
Overall Dimension（L×W×H）	mm	8850x2980x3420
Type	-	Flow amplification steering system
Steering Angle Each Direction	-	37º
Min. Turning Radius	mm	7130
Working Pressure	Mpa	-
Boom Lifting Time	s	-
Total Cycle Time	s	10.6
Fuel Tank	L	320
Hydraulic Tank	L	210
