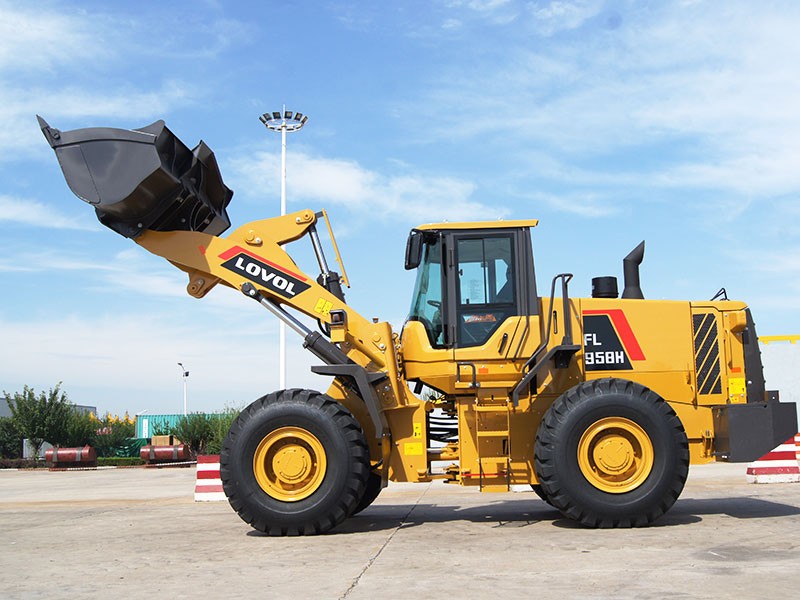

Wheel Loader FL958H

Highlights

*Adopt the industry-leading Fixed & variable hydraulic system that improves the

efficiency of hydraulic system greatly.

*With a world-famous ZF transmission, both transmission efficiency and reliability

go beyond your expectations.

*The whole equipment with durable components undergoing rigorous tests and

validation deserves your trust.

*The split-type hood and easily-accessible engine parts make it easy for you to

complete maintenance work when standing on the ground.

Parameters

Item	Unit	Parameter
Rated Power	kW	154.8/207
Operating Weight	kg	17250
Bucket Capacity	m³	3.3
Engine Model	-	WEICHAI LOVOL WD10G220E21
Max. Breakout Force	kN	165
Rated Load	kd	5500
Max. Traction Force	KN	155
Max. Gradeability	°	30
Max. Dump Clearance	mm	3050
Dump Reach	mm	1150
Wheel Tread	mm	2150
Wheelbase	mm	3300
Overall Dimension（L×W×H）	mm	8420×2980×3380
Type	-	Fix&Variable hydraulic system
Steering Angle Each Direction	-	37º
Min. Turning Radius	mm	7020
Working Pressure	Mpa	18
Boom Lifting Time	s	5.7
Total Cycle Time	s	10.6
Fuel Tank	L	320
Hydraulic Tank	L	130
Engine Oil	L	20L
