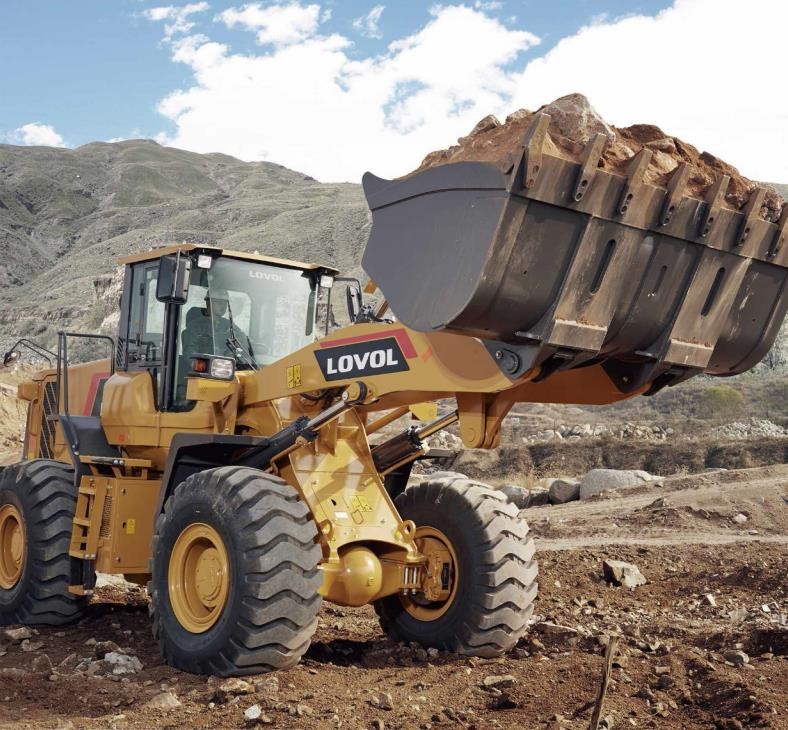

Wheel Loader FL956H

Highlights

*WEICHAI special engine provides you with strong driving force to deal with

various challenges with ease.

*Standard 3.3CBM bucket, rated load 5500KG, 10% bigger than average.

*Specialized design for premium customers, heavy-duty design with resistance

frames is suitable for hard earth and rock mining applications.

*Standard equipped with Multi-stage power hydraulic system, featuring three pump

confluence and energy efficiency which leading the industry.

*LOVOL ETX (European Technology Excellent) cab adopts skeleton structure

which features great vision, solid frame and less noise, these could provide a

comfortable working environment for operator.

Parameters

Item	Unit	Parameter
Rated Power	kW	162
Operating Weight	kg	16980
Bucket Capacity	m³	3.3
Engine Model	-	WEICHAI WD10G220E23
Max. Breakout Force	kN	165
Rated Load	kd	5500
Max. Traction Force	KN	160
Max. Gradeability	°	30
Max. Dump Clearance	mm	3080
Dump Reach	mm	1150
Wheel Tread	mm	2150
Wheelbase	mm	3300
Overall Dimension（L×W×H）	mm	8360×2980×3380
Type	-	Three pump flow conffluence, hydraulic flow amplification system
Steering Angle Each Direction	-	37º
Min. Turning Radius	mm	7020
Working Pressure	Mpa	18
Boom Lifting Time	s	5.7
Total Cycle Time	s	10.6
Fuel Tank	L	320
Hydraulic Tank	L	130
Engine Oil	L	20L
