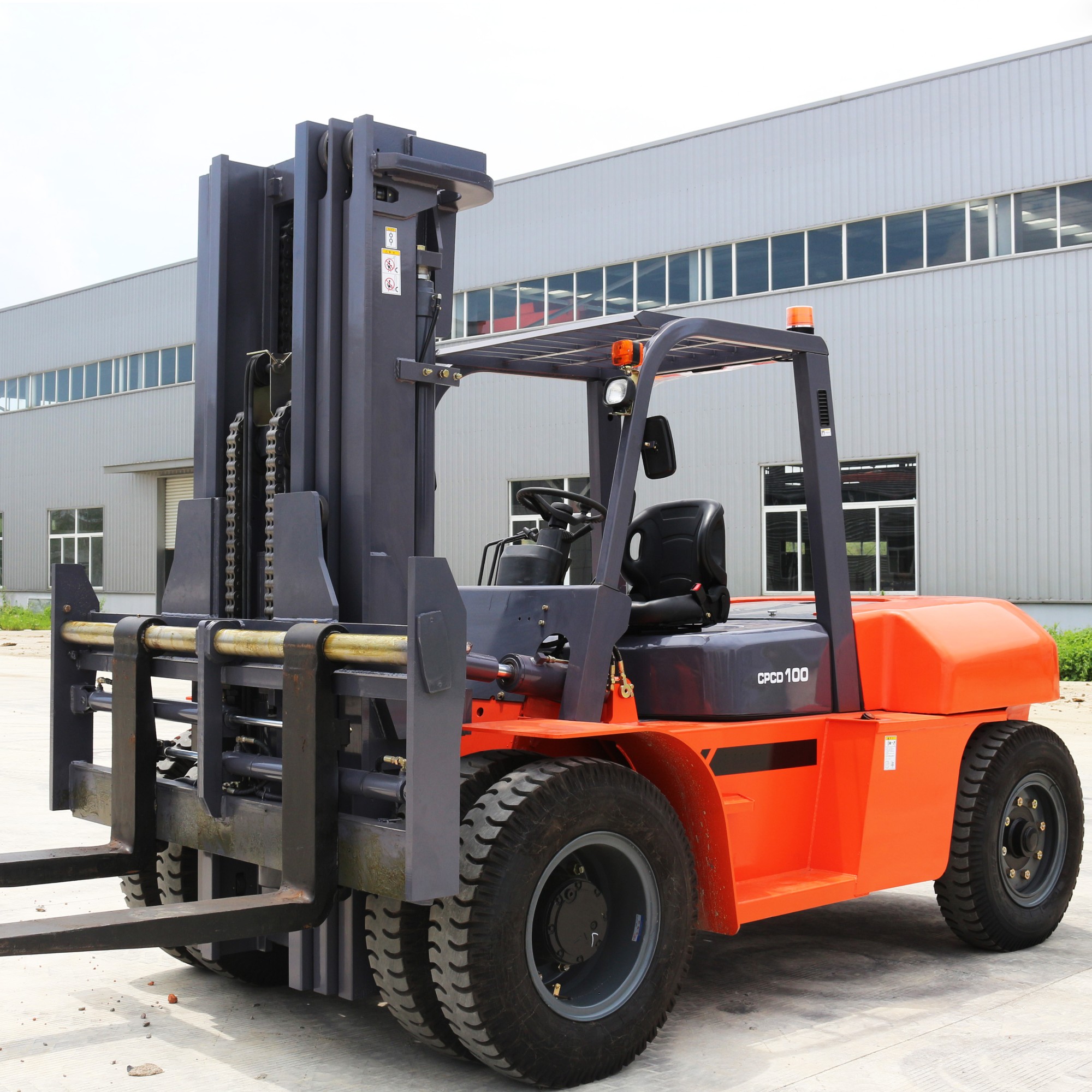

Diesel Forklift 10ton

Model

-

CPCD100

Power type

-

Diesel

Rated capacity

kg

10000

Load center

mm

600

Operator type

-

Drive in seat

SIZE

Max. lift height of mast with load-backrest

mm

4320

Max. lift height of fork(standard)

mm

3000

Height of mast(standard)

mm

2840

Free lift height(standard)

mm

100

Height of load-backrest

mm

1015

Distance from seat to overhead guard

mm

1080

Overhead guard height

mm

2560

Overall length without fork

mm

4270

Front overhang

mm

720

Rear overhang

mm

742

Wheel base

mm

2800

Height of traction pin

mm

520

Min. ground clearance

mm

225

Overall width

mm

2165

Distance between forks

mm

2460/450

Tread(front/rear)

mm

1600/1800

Min. turning radius(outside)

mm

4080

Min. turning radius(inside)

mm

210

Min. intersecting aisle

mm

3540

Mast tilt angle

deg

6°/12°

Fork size

mm

1220x175x80

PERFORANCE

Max. drive speed(with/without full load)

km/h

20/22

Lifting speed(with/without full load)

mm/s

340

Lowering speed(with/without full load)

mm/s

600/300

Max.tractive force(with/without full load)

KN

58

Max. grade ability(with/without full load)

%

22

WEIGHT

Total weight

kg

12860

Weight distribution full load(front/rear)

kg

20480/2170

Weight distribution zero load(front/rear)

kg

5770/6880

WHEELS AND TYRES

Quantity of wheels

-

4X/2

Type of tyres

-

Pneumatic tyres

Front tyres

-

9.00-20-16PR

Rear tyres

-

9.00-20-16PR

Driving brake

-

Hydraumatic pedal

Parking brake

-

Mechanical manual

CONTROL DEVICE FOR DRIVING AND TRANSMITTING

Battery

V/AH

24/2x80

Engine model

-

Xichai6110

Rated power

kw/rpm

83/2000

Rated torque

N.m/rpm

450/1450

No. of cylinder

-

6-100x125

Displacement

L

7.13

Fuel tank capacity

L

140

No. of speed transmission

-

2-2 Power shift transmission
