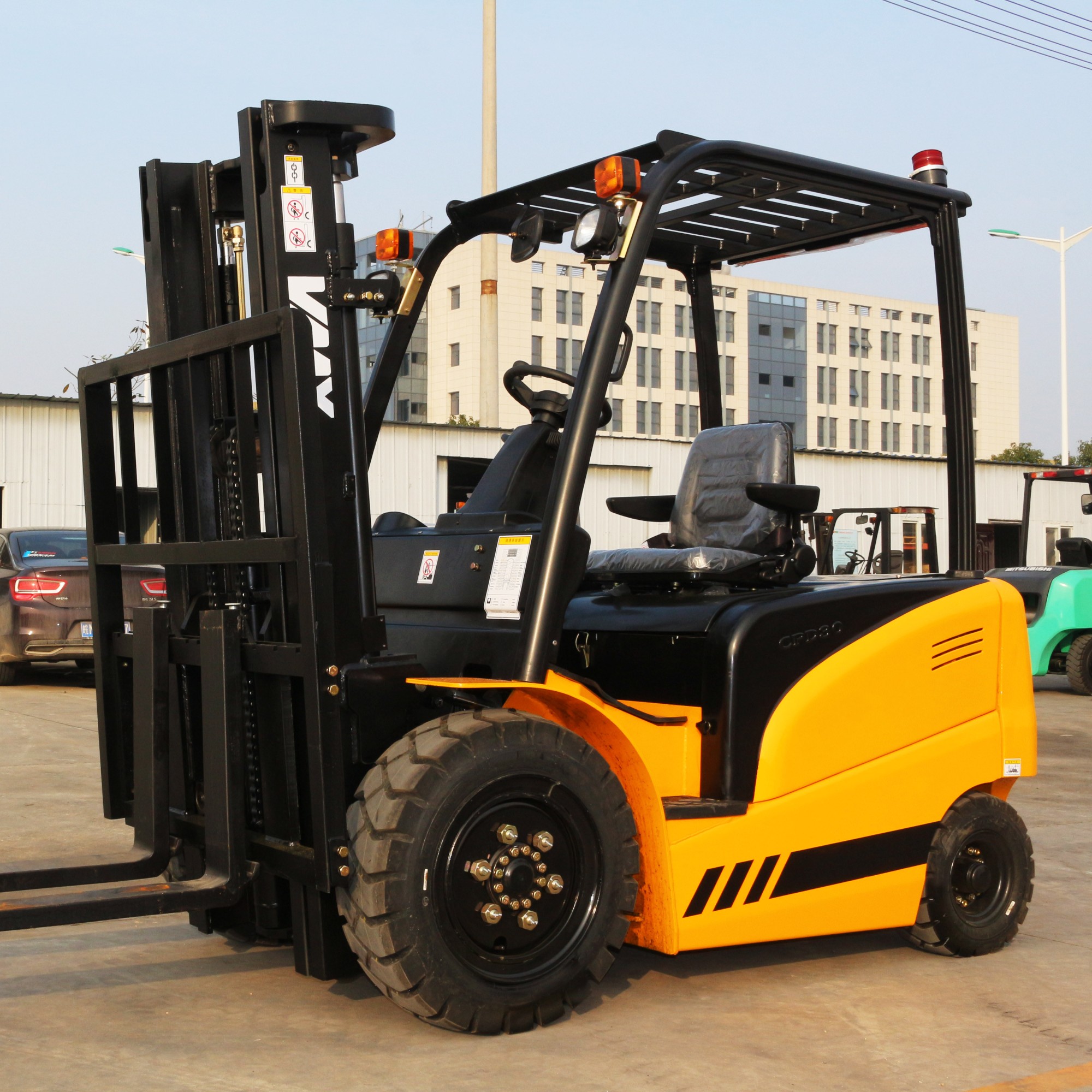

Electric Forklift 3ton

Highlights

1. Power System

Equipped with original imported American Curtis electric control system;

High voltage and large capacity battery can supply the forklift with strong power;

DC or AC motors are optional according to customers’ requirements.

2. Security System

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

3. Lighting System

Equipped with full set of LED lamps, which are brighter and energy saving.

Parameters

Model	-	CPD30
Operation type	-	Drive in seat
Load capacity	kg	3000
Load center	mm	500
Power type	-	Electric
TIRE/CHASSIS
Tire type	-	Pneumatic tire
Number of wheels	-	2X/2
Tire size	-	28X9-15-12PR/18X7-8-14PR
Service brake	-	Hydraumatic pedal
Parking brake	-	Mechanical manual
SIZE
Mast tilt	°	6/12
Mast height after mast fall	mm	2025
Fork lift max. height	mm	4160
Free lift height	mm	150
Standard mast height	mm	3000
Overhead guard height	mm	2092
Overall length	mm	2507
Fork overhang	mm	475
From the rear	mm	432
Wheelbase	mm	1600
Min. distance over the ground	mm	110
Tread	mm	1000/970
Vehicle width	mm	1220
Fork size	mm	1070x125x45
Channel width	mm	4105
Turning radius	mm	2360
PERFORMANCE
Walking speed, load/without	km/h	14/15
Lifting speed, load/without	m/s	300/400
Dropping speed, load/without	m/s	390/260
Max. traction, load	N	20000
Max. grade ability, load/without	%	14/15
DRIVE
Drive motor power	kw	16.6
Lifting motor power	kw	13.5
Level voltage/capacitance	v/ah	80/500
OTHERS
Drive system	-	DC/AC
Electric control system	-	Curtis/Inmotion
Total weight	kg	4950
