Highlights

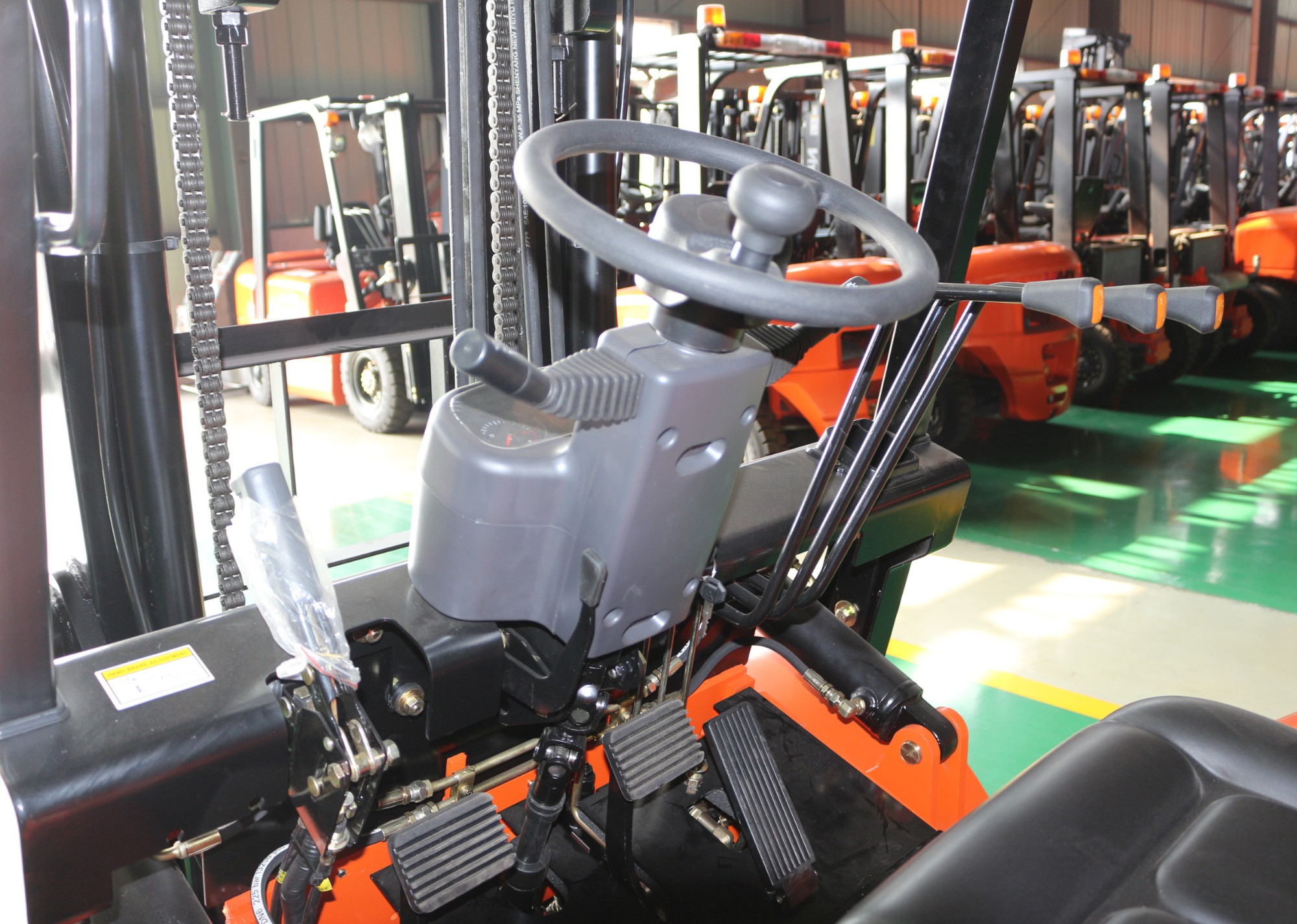

1.Electro-hydraulic reversing handle
Adopt electro-hydraulic reversing handle to ensure easy operation,reducing the labor intensity effectively
2.Instrument panel & meter display
Fix the instrument panel with concise meter on right side, ensure the driver read and understand easily.
3.New design overhead guard
Heightening overhead guard with big circular arc structure of front legs enlarge the operating space and expand visual field, reducing the driving fatigue.

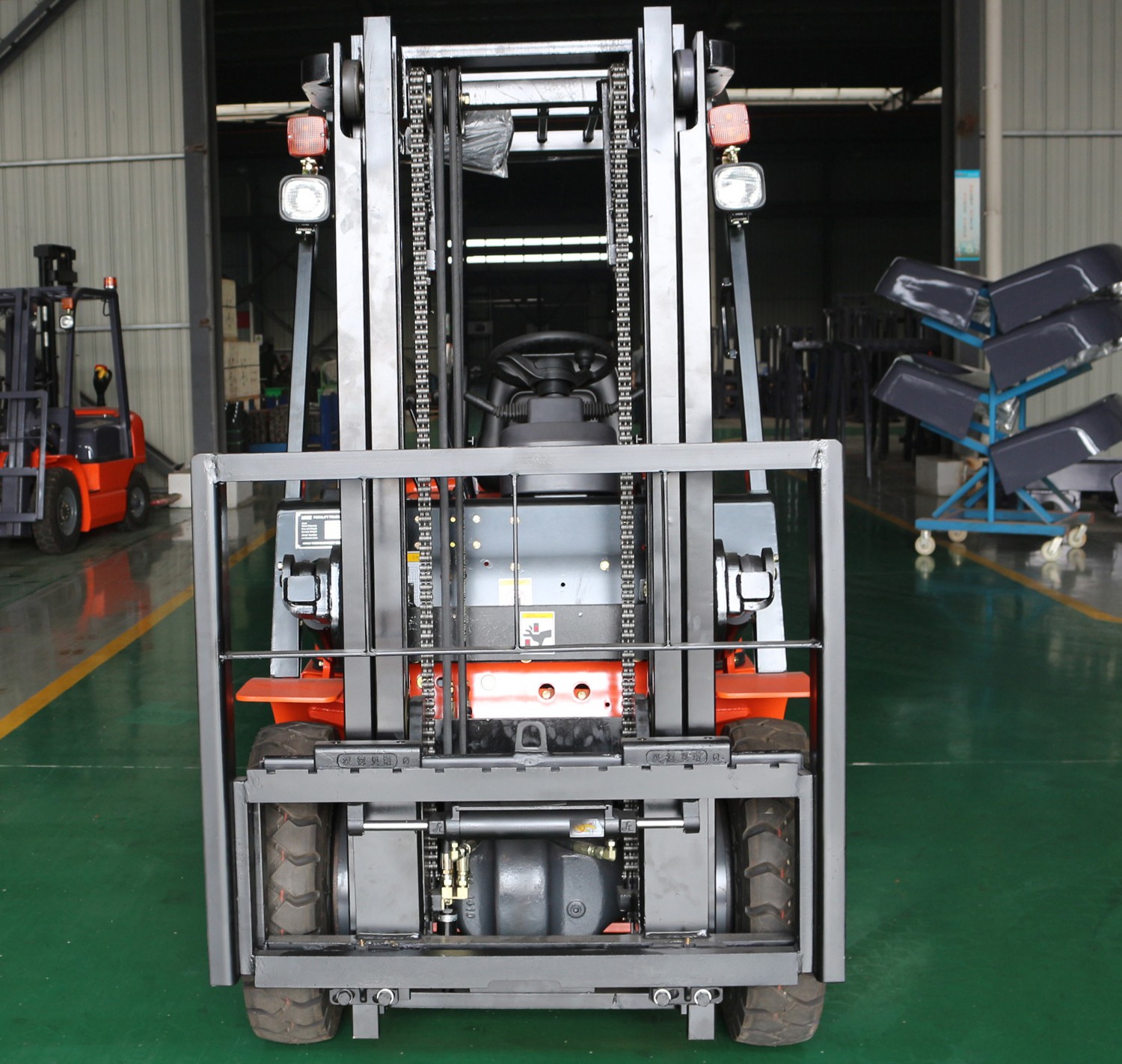

4. New type wide view stable mast
Original imported German U-steel as optional together with advanced welding process and technology make the mast more stable and durable.

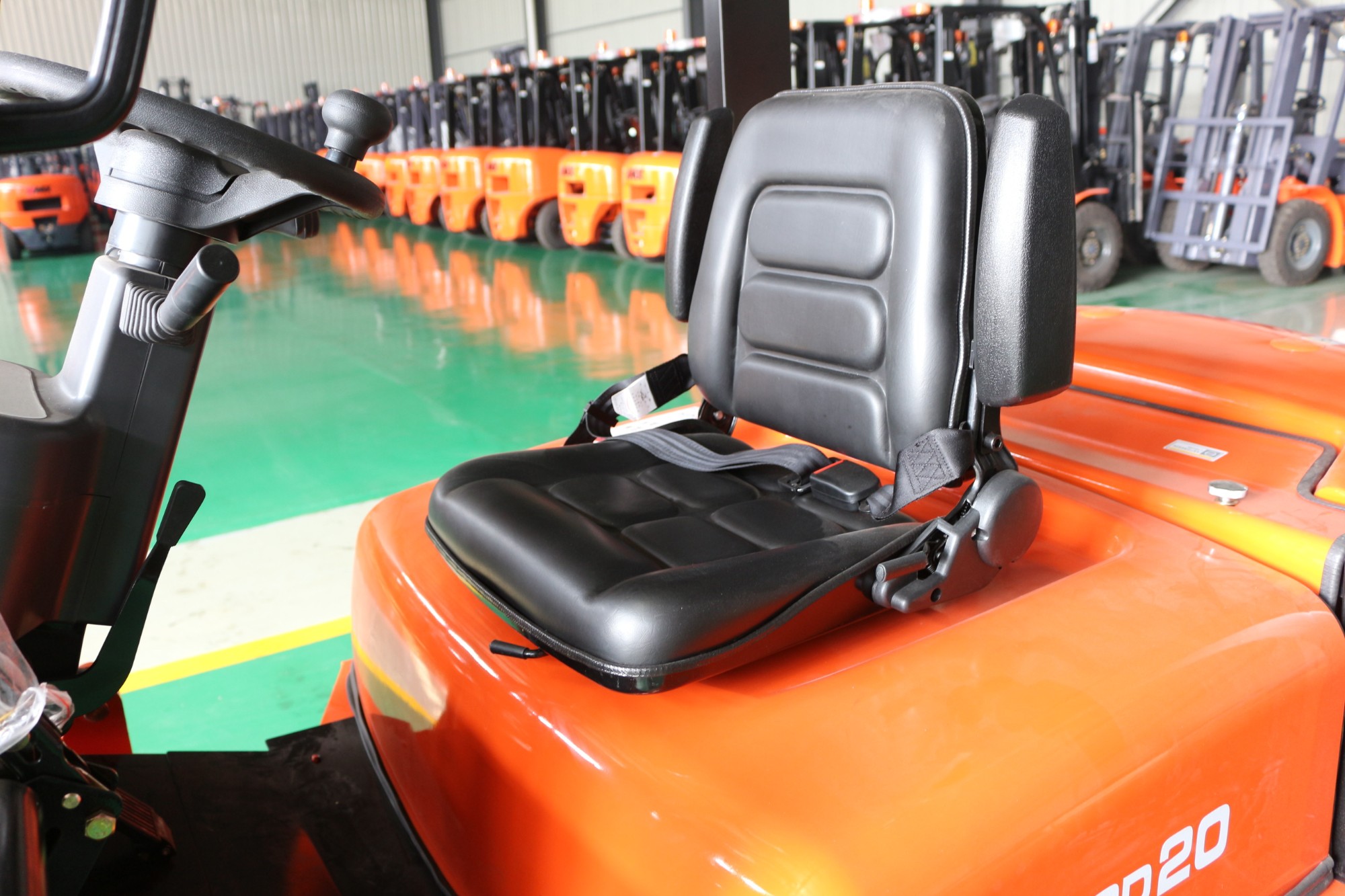

5.Security system
Equipped with OPS system as optional. When the operator leaves the seat during operation, the system will cut off the driving power to avoid accident happens.
Parameters
|

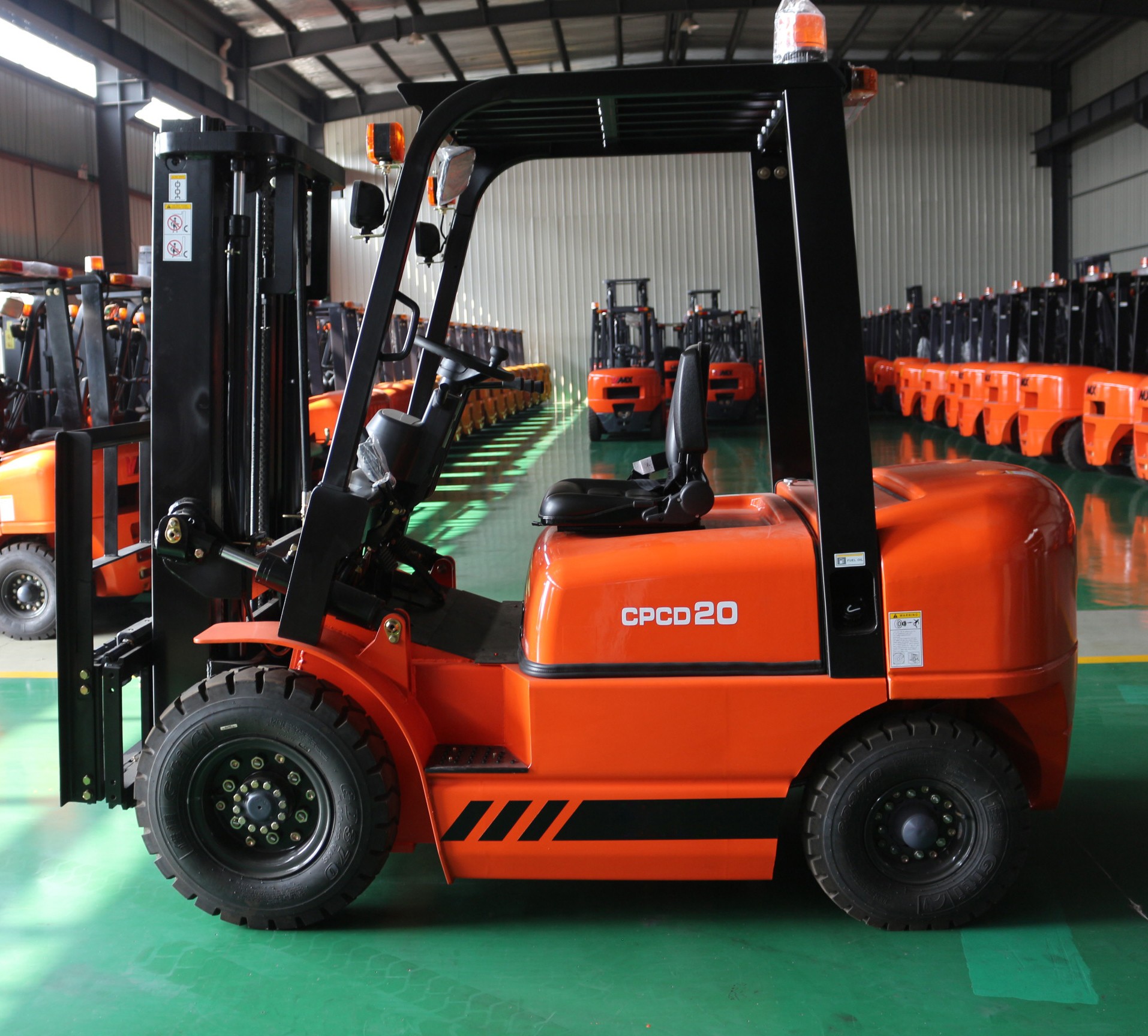

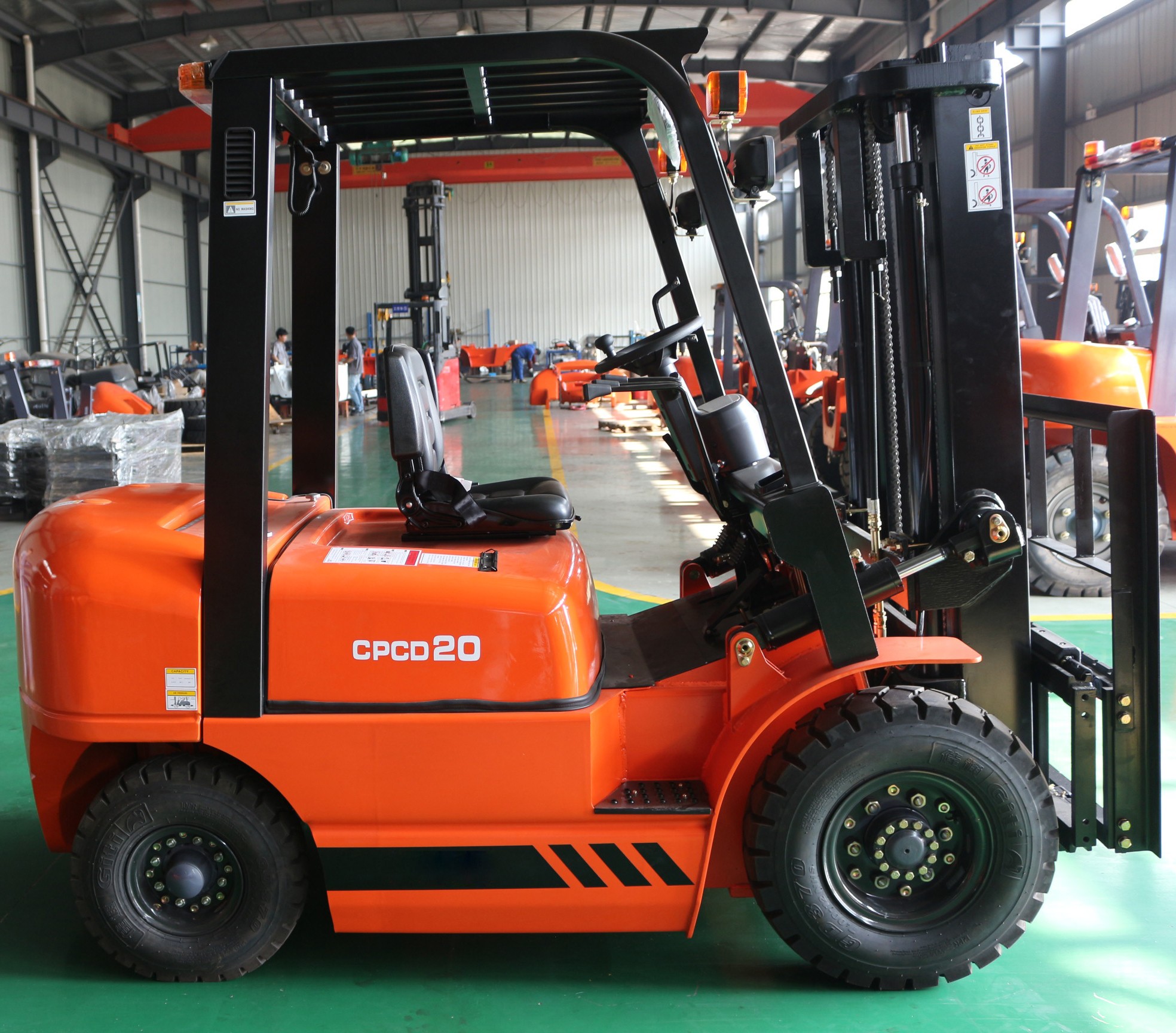

Model
|
UNIT
|
CPCD20
|
|
Power type
|
-
|
Diesel
|
|
Rated capacity
|
kg
|
2000
|
|
Load center
|
mm
|
500
|
|
Operator type
|
-
|
Drive in seat
|
|
SIZE
|
|
|
|
Max. lift height of mast with load-backrest
|
mm
|
4030
|
|
Max. lift height of fork(standard)
|
mm
|
3000
|
|
Height of mast(standard)
|
mm
|
1995
|
|
Free lift height(standard)
|
mm
|
170
|
|
Height of load-backrest
|
mm
|
1010
|
|
Distance from seat to overhead guard
|
mm
|
1005
|
|
Overhead guard height
|
mm
|
2070
|
|
Overall length without fork
|
mm
|
3480/2560
|
|
Front overhang
|
mm
|
477
|
|
Rear overhang
|
mm
|
498
|
|
Wheel base
|
mm
|
1600
|
|
Height of traction pin
|
mm
|
290
|
|
Min. ground clearance
|
mm
|
110
|
|
Overall width
|
mm
|
1170
|
|
Distance between forks
|
mm
|
1024/200
|
|
Tread(front/rear)
|
mm
|
970/970
|
|
Min. turning radius(outside)
|
mm
|
2170
|
|
Min. turning radius(inside)
|
mm
|
160
|
|
Min. intersecting aisle
|
mm
|
2200
|
|
Mast tilt angle
|
deg
|
6°/12°
|
|
Fork size
|
mm
|
1070x100x40
|
|
PERFORANCE
|
|
|
|
Max. drive speed(with/without full load)
|
km/h
|
18/20
|
|
Lifting speed(with/without full load)
|
mm/s
|
450/490
|
|
Lowering speed(with/without full load)
|
mm/s
|
520/490
|
|
Max.tractive force(with/without full load)
|
KN
|
21/15
|
|
Max. grade ability(with/without full load)
|
%
|
27/20
|
|
WEIGHT
|
|
|
|
Total weight
|
kg
|
3400
|
|
Weight distribution full load(front/rear)
|
kg
|
4788/532
|
|
Weight distribution zero load(front/rear)
|
kg
|
1328/1922
|
|
WHEELS AND TYRES
|
|
|
|
Quantity of wheels
|
-
|
2X/2
|
|
Type of tyres
|
-
|
Pneumatic tyres
|
|
Front tyres
|
-
|
7.00-12-12PR
|
|
Rear tyres
|
-
|
6.00-910PR
|
|
Driving brake
|
-
|
Hydraumatic pedal
|
|
Parking brake
|
-
|
Machanical manual
|
|
CONTROL DEVICE FOR DRIVING AND TRANSMITTING
|
|
|
|
Battery
|
V/AH
|
12/80
|
|
Engine model
|
-
|
4D27G31
|
|
Rated power
|
kw/rpm
|
36.8/2650
|
|
Rated torque
|
N.m/rpm
|
156/1700~1900
|
|
No. of cylinder
|
-
|
4-90x105
|
|
Displacement
|
L
|
2.67
|
|
Fuel tank capacity
|
L
|
60
|
|
No. of speed transmission
|
-
|
1-1 hand shift transmission/2-2 power shift transmission
|
