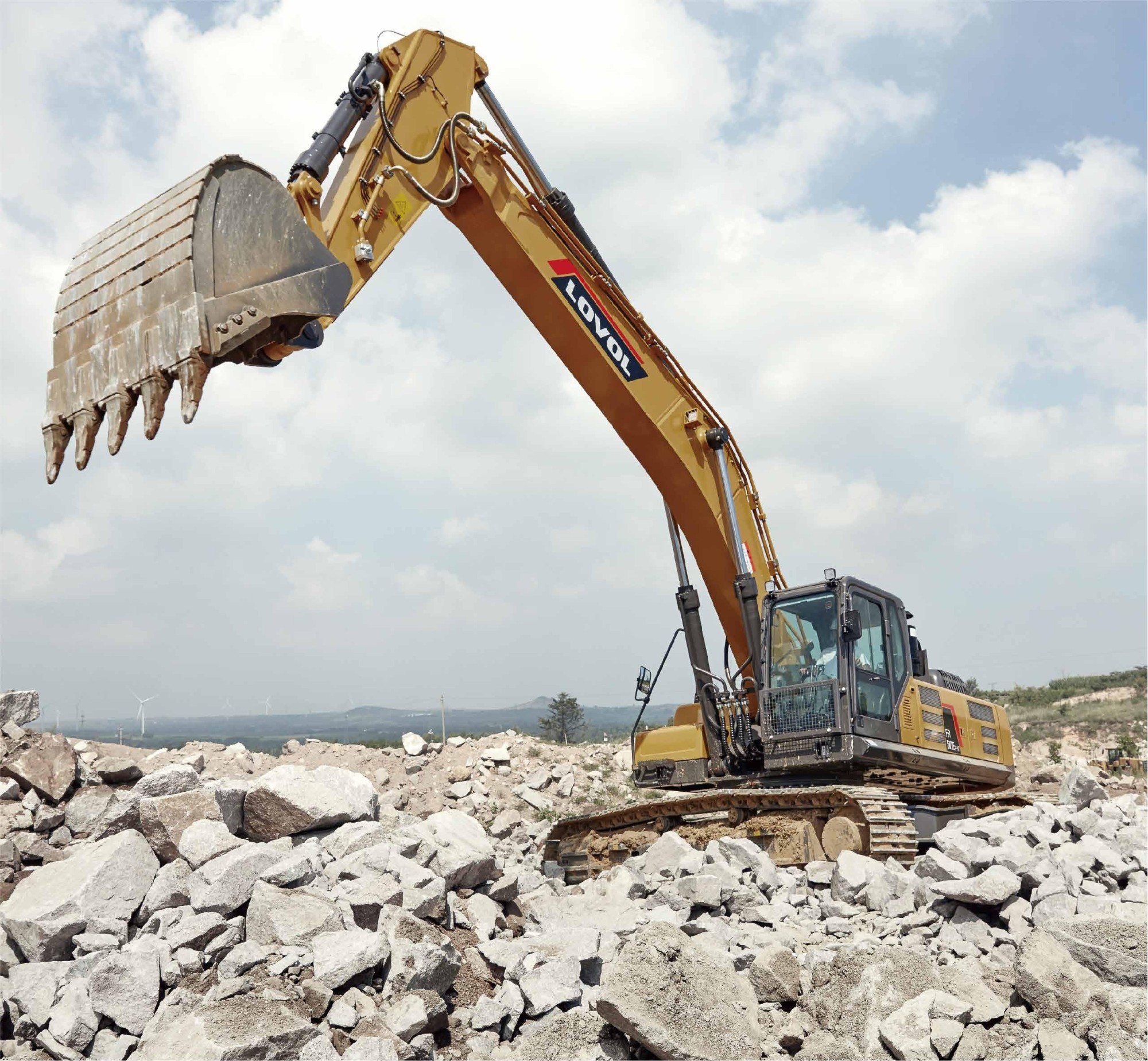

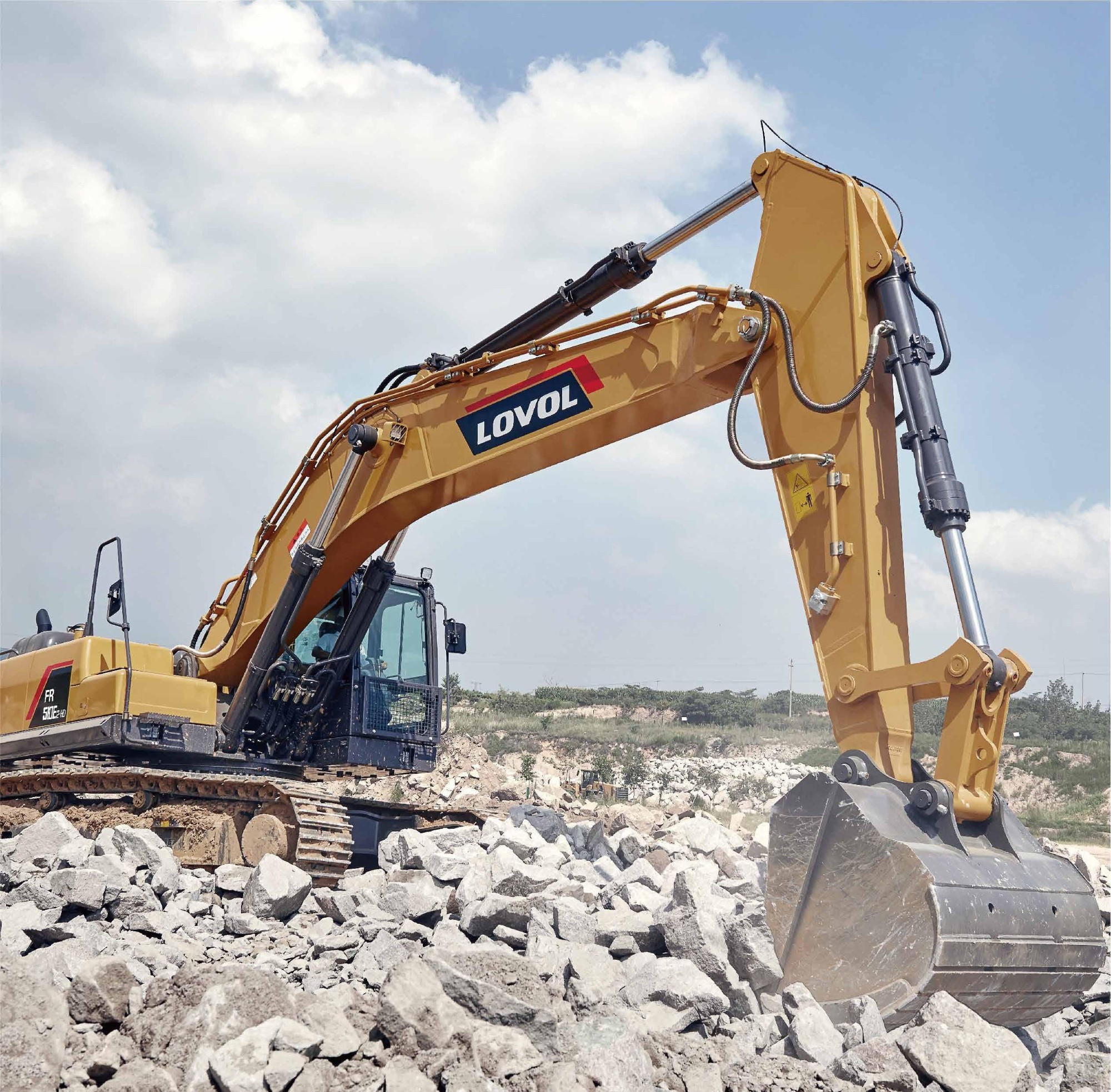

Crawler Excavator FR600E2-HD

Product Item : FR600E2-HD
Category：Crawler Excavator
INQUIRY EMAIL

Product Highlights

*It is provided with WEICHAI WP13H engine which offers strong power and is

time-tested.

*LOVOL original independent cooling loop system for working oil ensures

that the hydraulic system of the whole machine always works in a stable state.

*The heavy-duty design, suitable for mining operations, enables the equipment to cope with complex working conditions.

*The specially-developed dual-pump confluence technology for crushing conditions has greater crushing force and higher efficiency among machines of the same kind.

Product Parameters

Item	Unit	Parameter
Rated Power	kW/rpm	316/1900
Bucket Capacity	m³	3.2
Operating Weight	kg	55000
Engine Model	-	WP13H
Number of Cylinders	-	6
Max. Torque/Speed	N.m/rpm	1898/1400
Displacement	L	10.8
Bucket Digging Force	kN	310
Arm Digging Force	kN	260
Max. Traction Force	kN	382
Max. Walking Speed	km/h	4.6
Min. Walking Speed	km/h	2.9
Rotary Speed	r/min	7.8
Gradeability	。	35
Ground Pressure	KPa	83
Max. Main Pump Flow	L/min	760
Main Safety Valve Pressure	MPa	34.3
Fuel Tank	L	670
Hydraulic Tank	L	370
Engine Oil	L	38
